Product Details
Key Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Specifically designed for thin wing aircraft models and sailplanes
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
In The Box

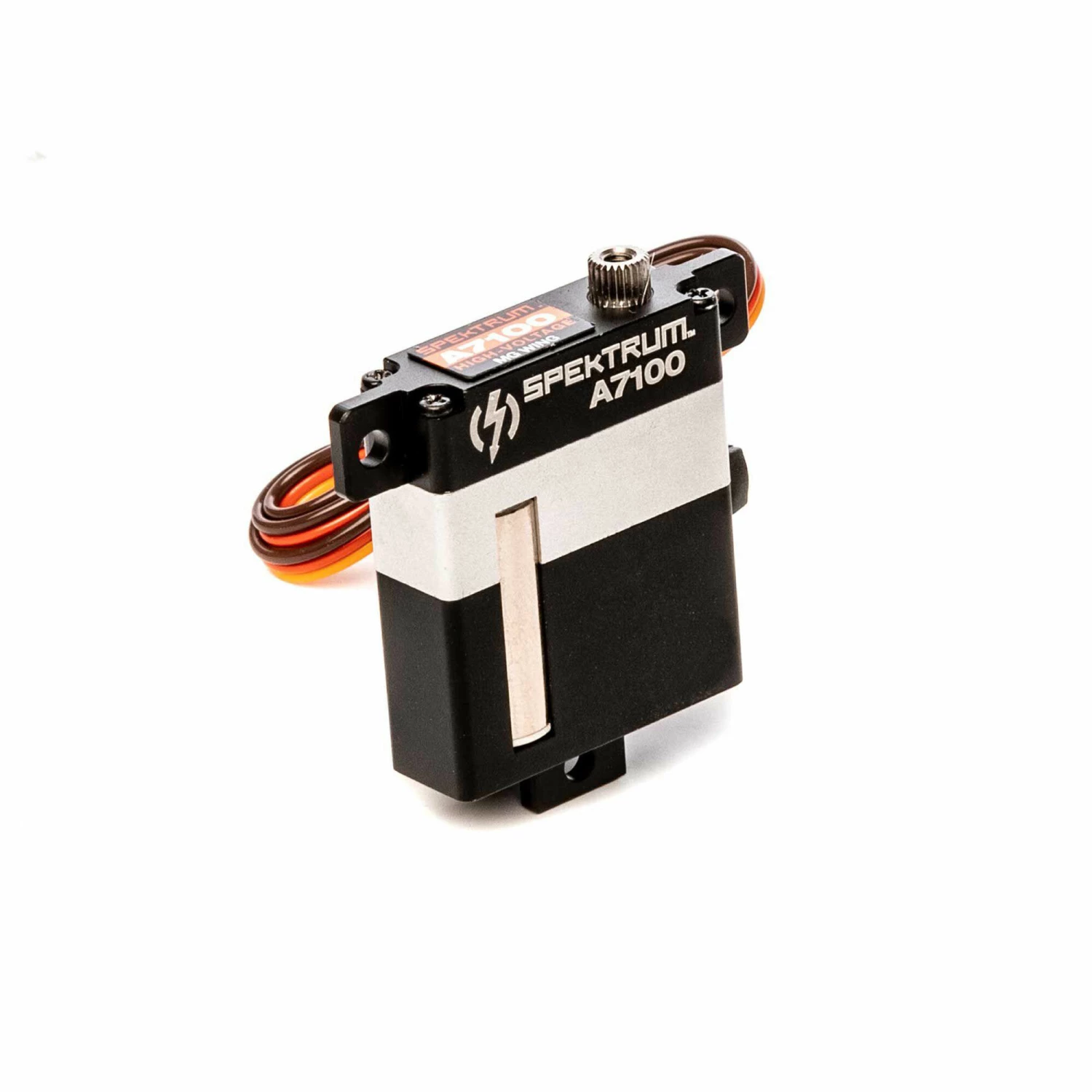

- (1) A7100 Wing Servo
- (1) Double-sided Plastic Servo Arm
- (1) One Inch Red Anodized Aluminum Servo Arm
Product Specifications
- Bearing: Single BB
- Bushing Or Bearing: Bearing
- Deadband: <1µs
- Gear Type: Metal
- Input Voltage: 4.8V-8.4V
- Maximum Servo Torque: 96 oz-in (6.9kg-cm) @ 6.0V; 100 oz-in (7.2kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V
- Maximum Servo Speed: 0.091 sec/60 deg @ 6.0V; 0.086 sec/60 deg @ 7.4V; 0.078 sec/60 deg @ 8.4V
- Max Servo Torque: 100-199 oz-in
- Motor Type: Brushed
- Overload Protection: No

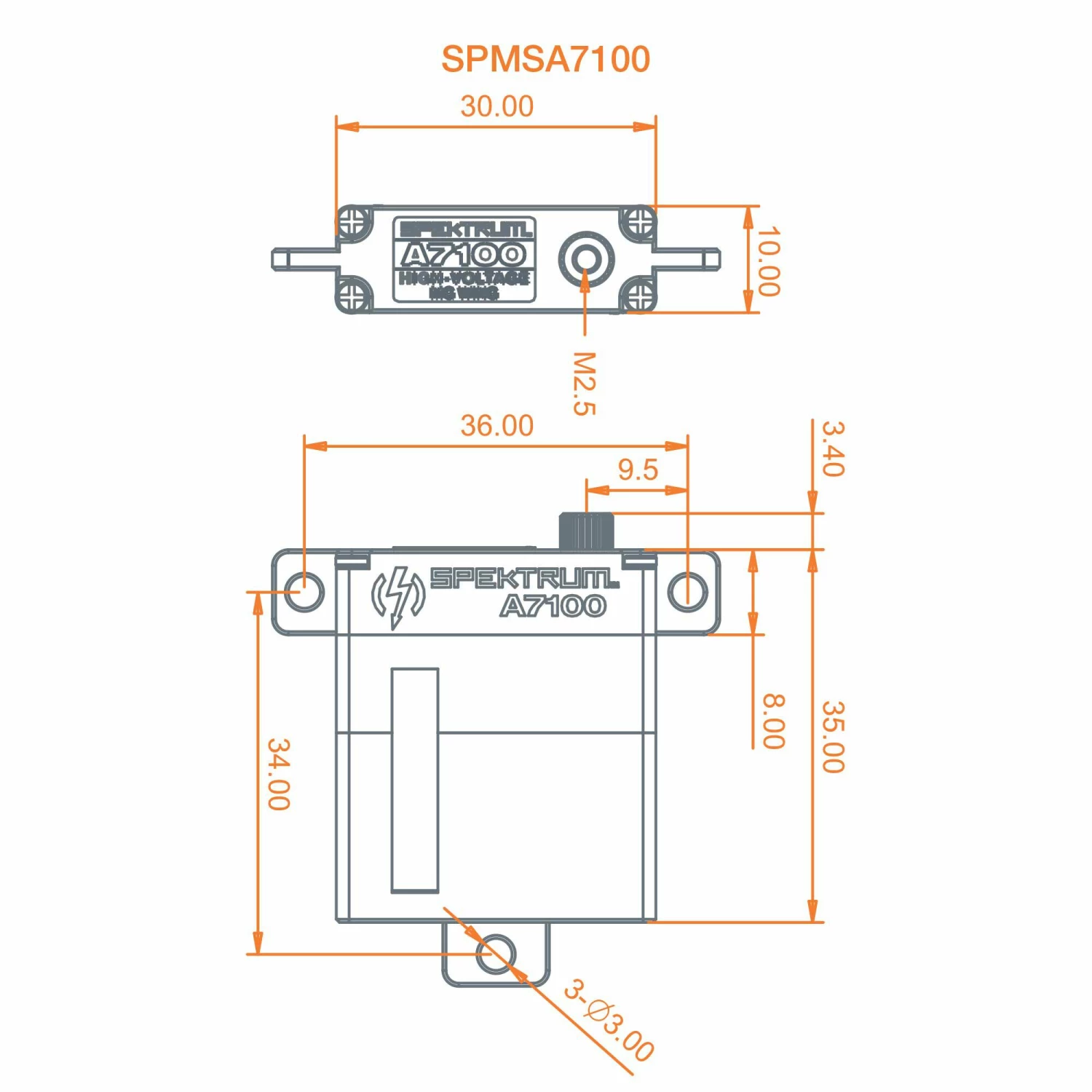

- Product Height: 1.38″ (35 mm)
- Product Length: 1.18″ (30 mm)
- Product Weight: 1.0 oz (28g)
- Product Width: 0.39″ (10 mm)
- Programmable: No
- Servo Size Category: Thin
- Servo Type: Digital
- Spline Count: 25 – Tooth
