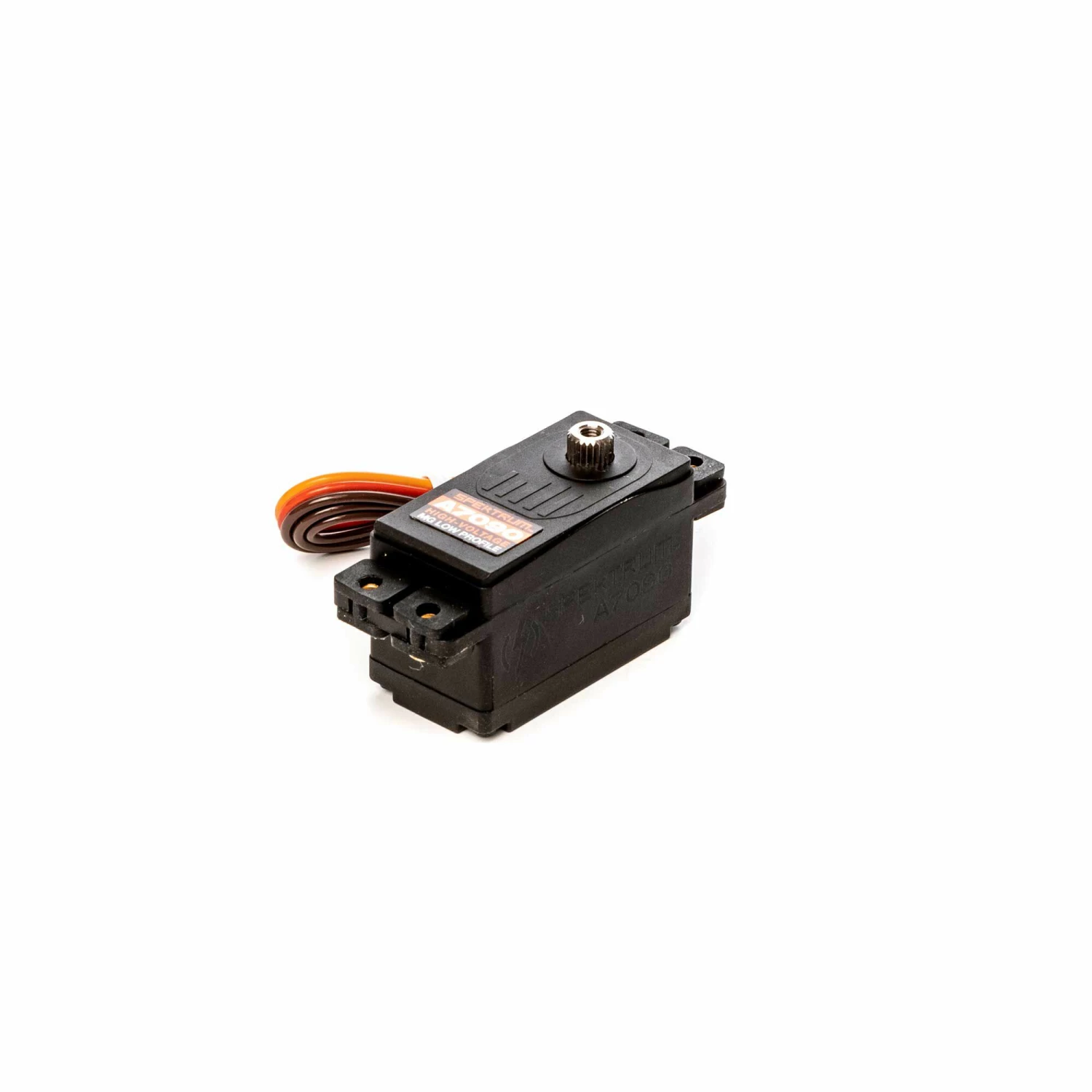

Spektrum A7090 Brushless Low Profile Metal Gear HV Servo

Original price was: $69.99.Current price is: $41.99.

SKU: SPMSA7090 Categories: Aircraft, Servos Tag: Spektrum

Quality You Can Count On
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.
Shop with confidence, enjoy free returns.

Description
Reviews (0)

Product Details

Key Features

High Voltage (HV) capable (4.8-8.4v input range)
Low profile design to fit into tighter spaces and shallow wing pockets
Durable and long-lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation

icon-box

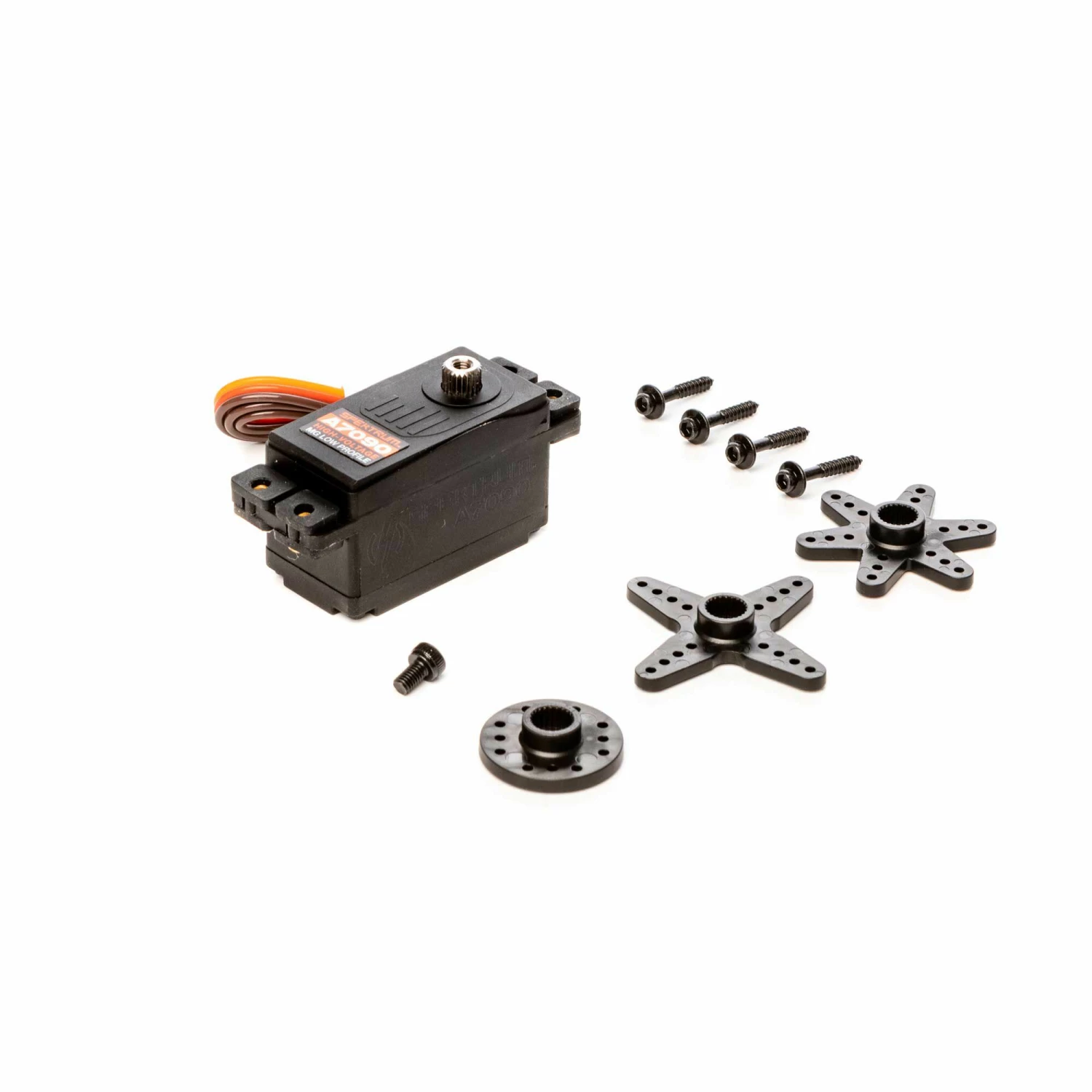

In The Box

(1) A7090 Brushless Servo
(4) Pre-installed Mounting Grommets and Eyelets With Hardware
(3) Plastic Servo Arms and (1) Screw

Product Specifications

Bearing: Dual BB
Bushing Or Bearing: Bearing
Deadband: <1µs
Gear Type: Metal
Input Voltage: 4.8V-8.4V
Material: Aluminium
Maximum Servo Torque: 205 oz-in (14.76kg-cm) @ 6.0V; 215 oz-in (15.5kg-cm) @ 7.4V; 250 oz-in (18kg-cm) @ 8.4V
Maximum Servo Speed: 0.17 sec/60 deg @ 6.0V; 0.091 sec/60 deg @ 7.4V; 0.068 sec/60 deg @ 8.4V
Max Servo Torque: 200-349 oz-in
Motor Type: Brushless
Overload Protection: No

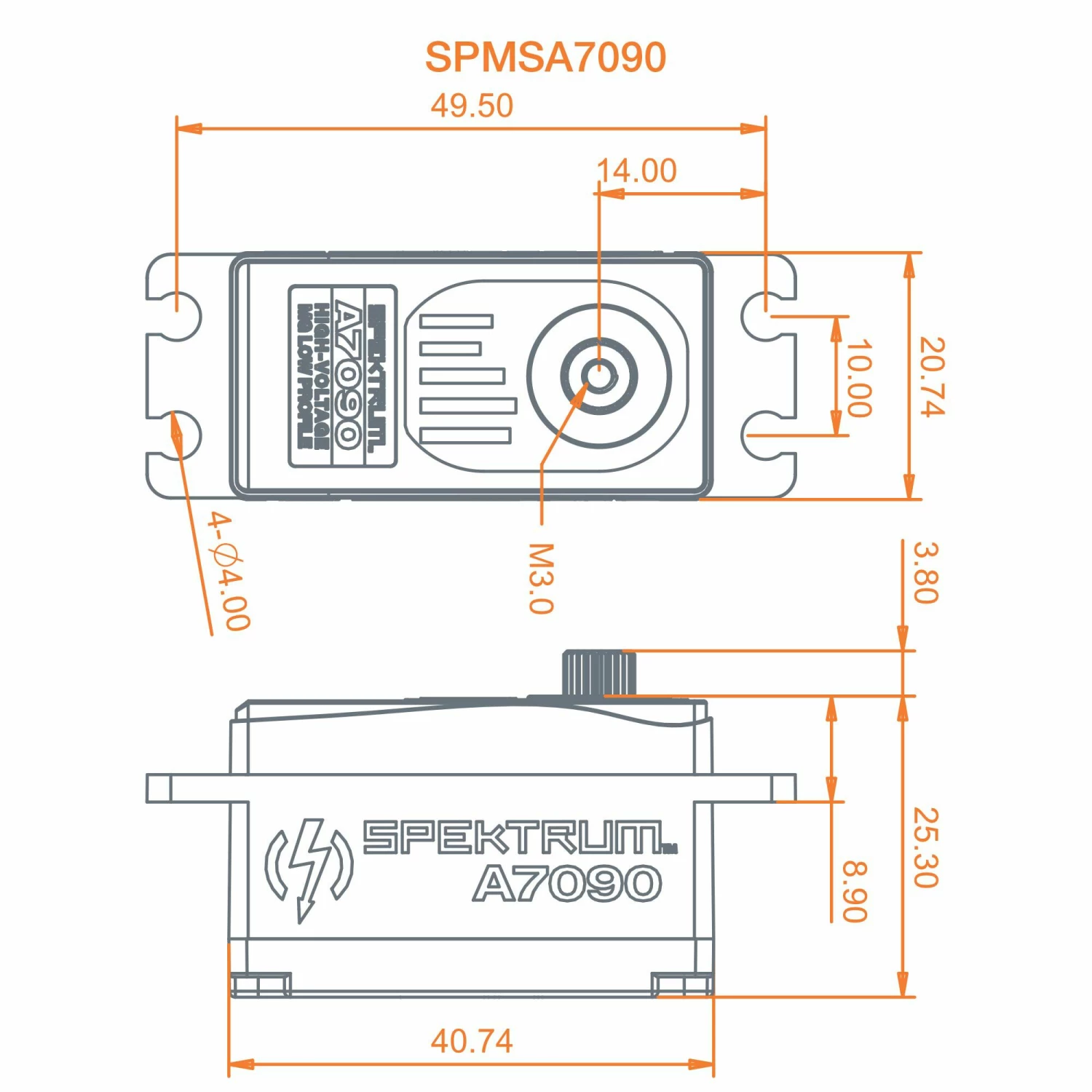

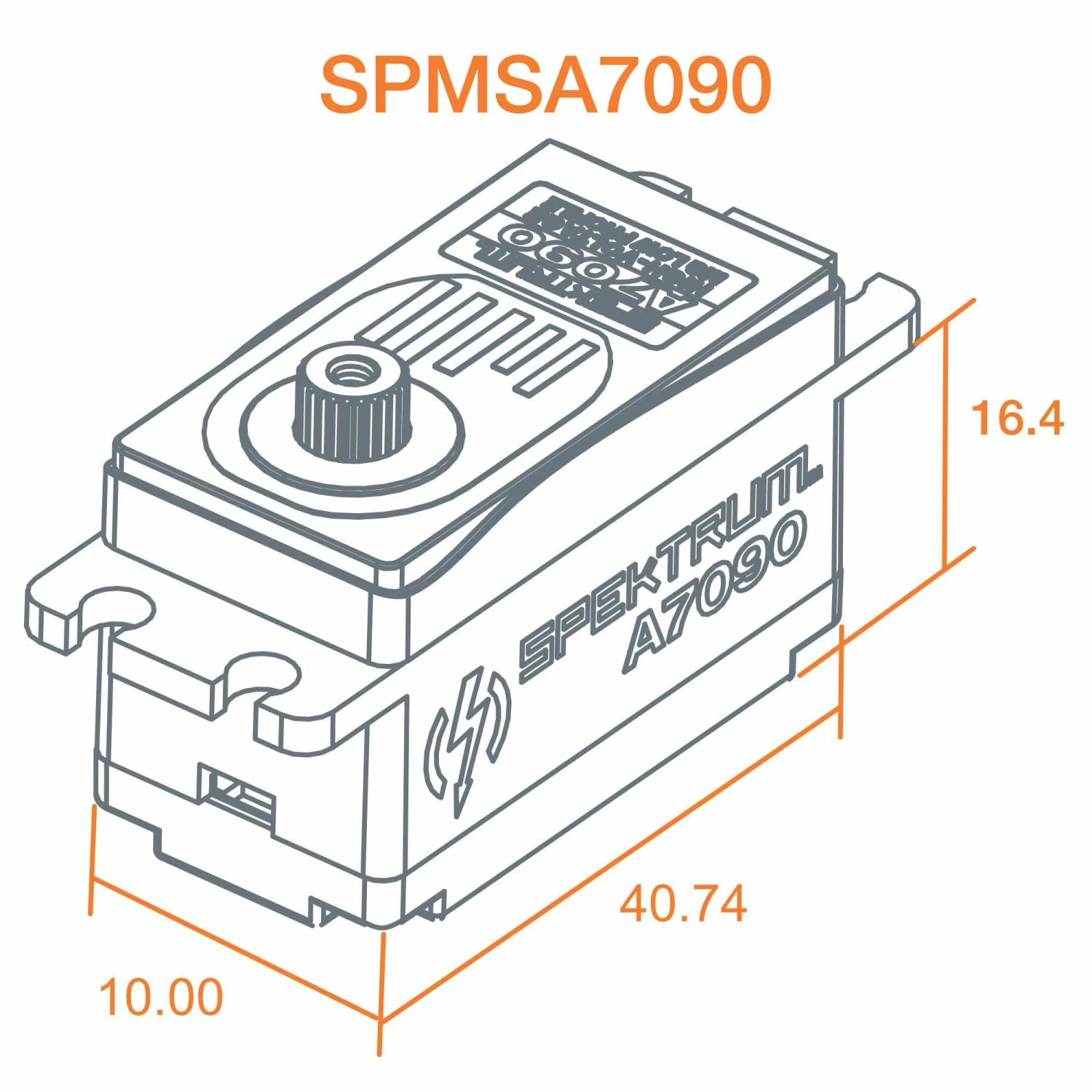

Product Height: 0.99″ (25 mm)
Product Length: 1.6″ (41 mm)
Product Weight: 1.8 oz (50g)
Product Width: 0.81″ (21 mm)
Programmable: No
Servo Operating Voltage: 4.8 – 8.4V (HV)
Servo Size Category: Low Profile
Servo Type: Digital
Spline Count: 23 – Tooth
