Product Details

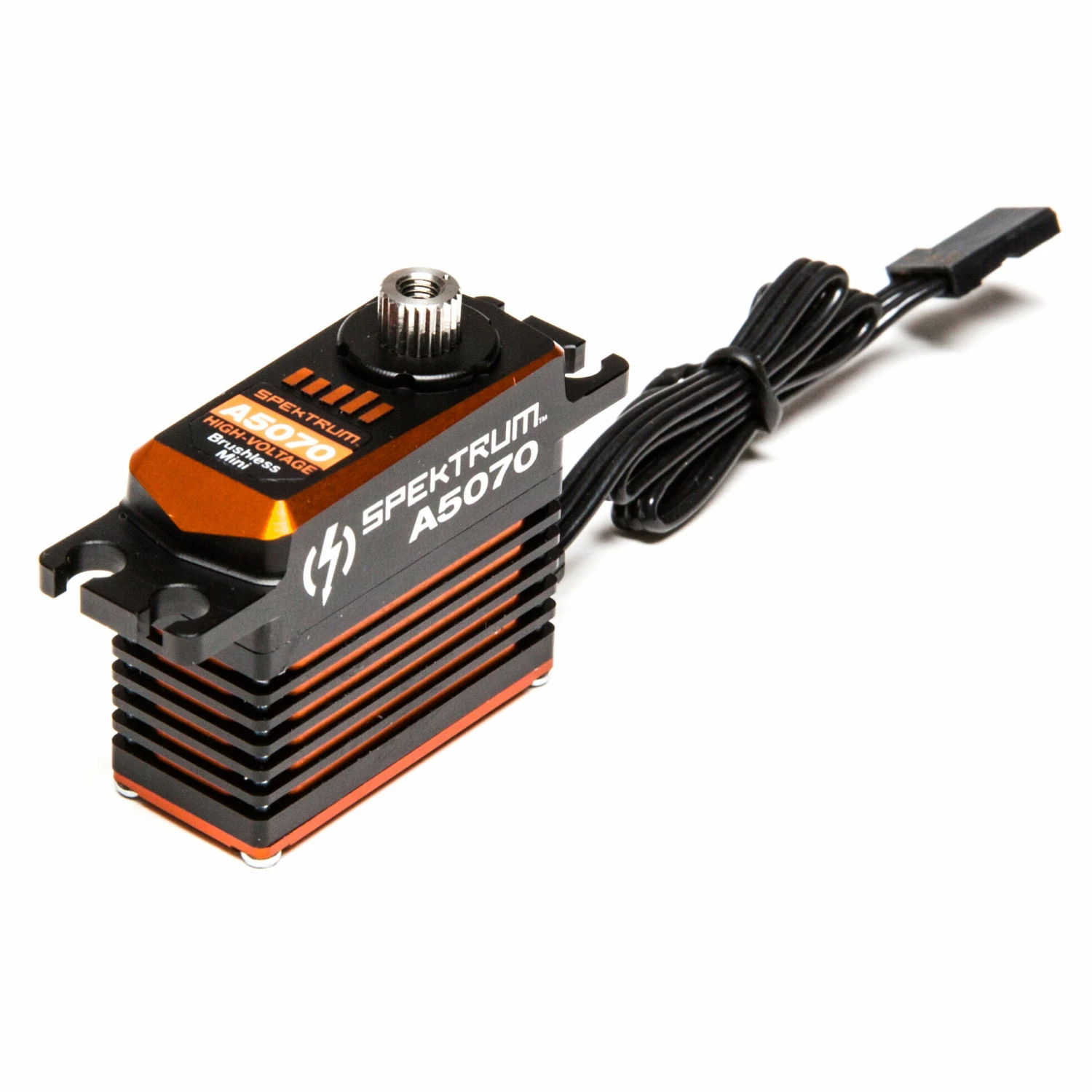

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate.The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.

Product Specifications

• Application: Airplane or Heli
• Bearing: Dual
• Bushing Or Bearing: Bearing
• Connector Type: Universal
• Connector Wire Length: 11.8 in (300mm)
• Deadband: 2?s
• Gear Type: Metal
• Maximum Servo Torque: 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
• Maximum Servo Speed: 0.050-0.099 sec
• Max Servo Torque: 100-199 oz-in
• Overload Protection: Yes

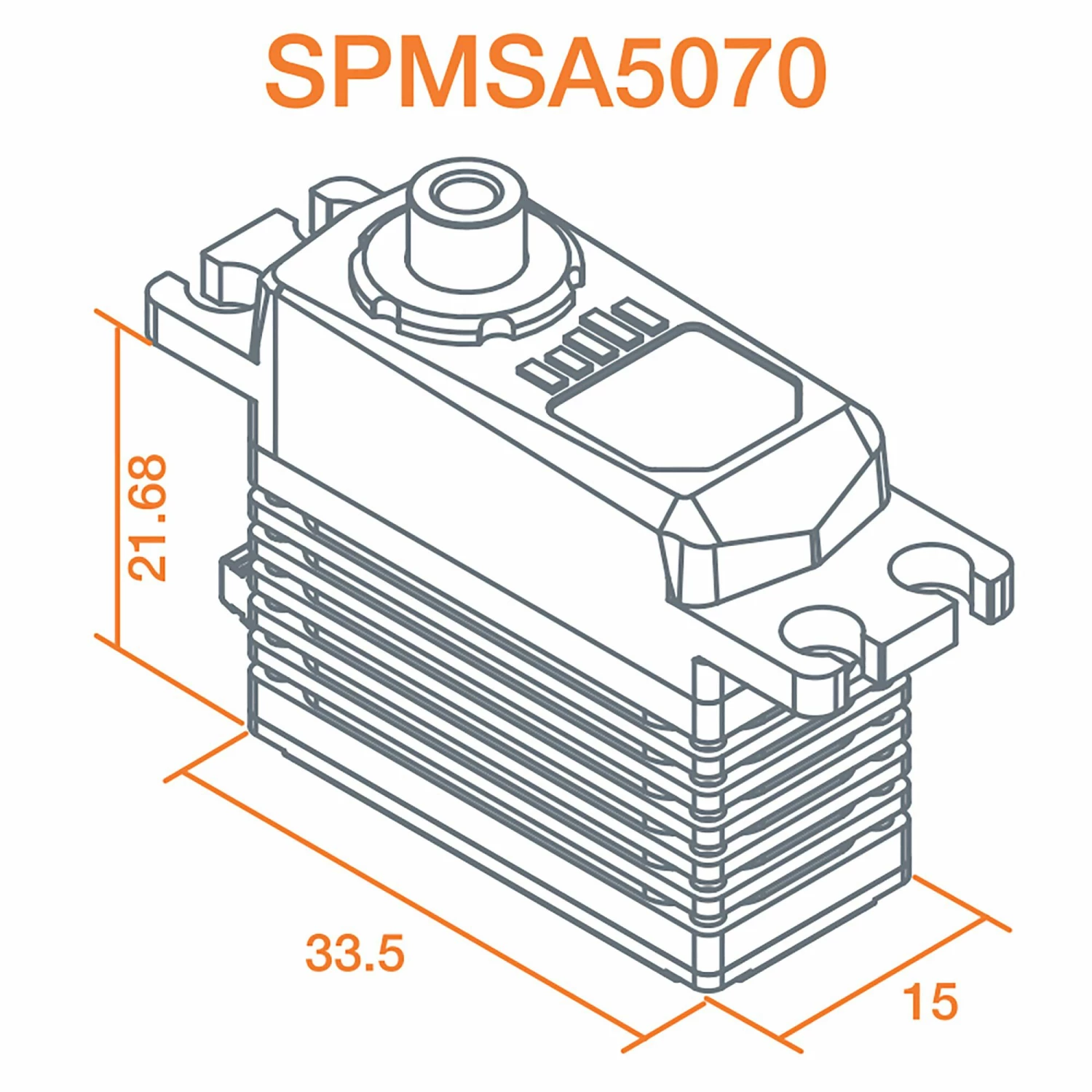

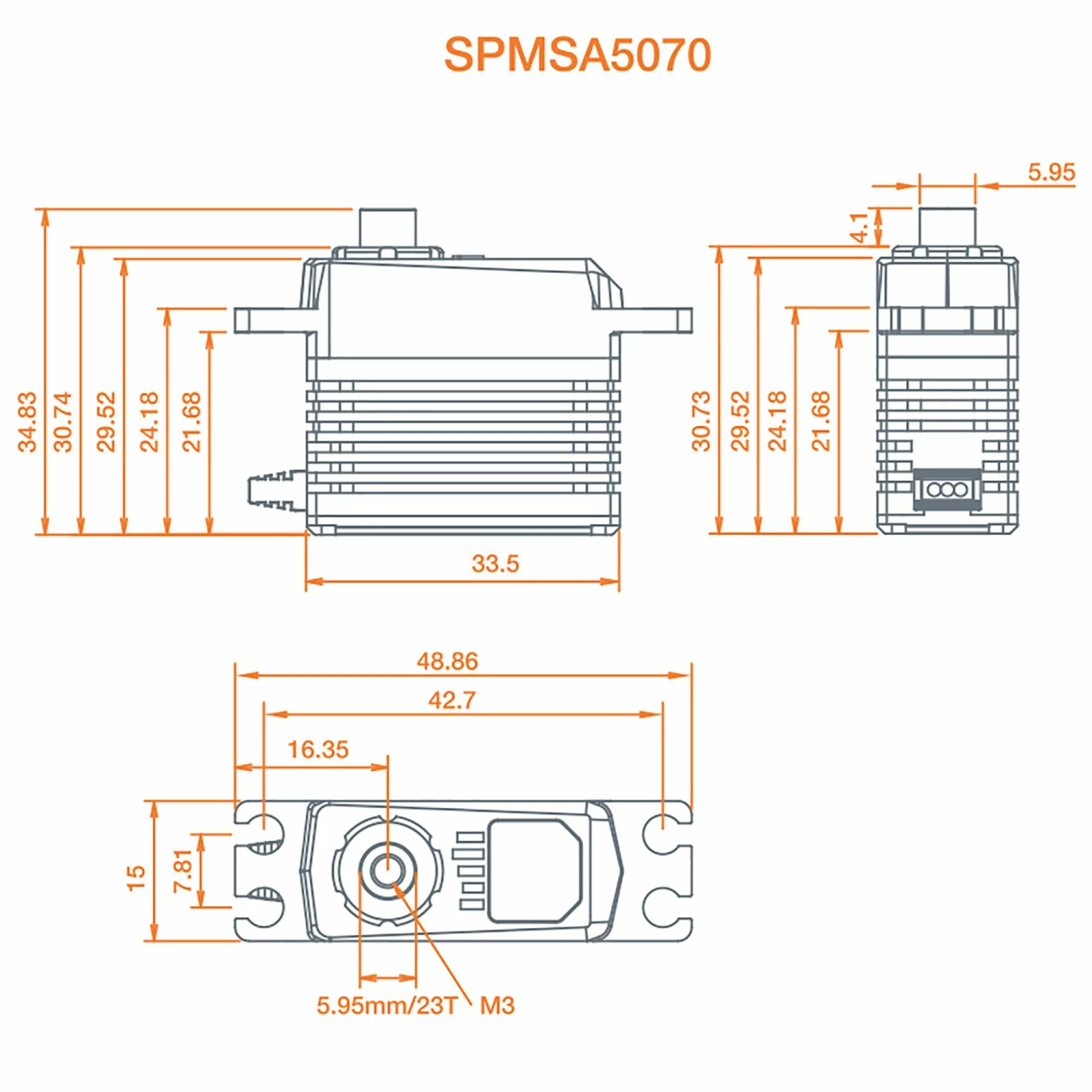

• Product Height: 1.16 in (29.4mm)
• Product Length: 1.32 in (33.5mm)
• Product Weight: 1.4 oz (40g)
• Product Width: 0.59 in (14.9mm)
• Programmable: No
• Rotation Range: 120?
• Servo Operating Voltage: 6.0 – 8.4V (HV)
• Servo Size Category: Mini
• Servo Type: Digital
• Wire Gauge: 22 AWG
