Product Details
Key Features
- Internal: Steel Gears / All Metal Casing
Product Specifications
- Bearing: 2 Ball Bearings
- Bushing Or Bearing: Bearing
- Deadband: 2 uSec
- Gear Type: Metal
- Maximum Servo Torque: 422oz @ 6.0V / 444oz @ 7.4V
- Maximum Servo Speed: .11sec @ 6.0V / .10sec @ 7.4V
- Max Servo Torque: 350-499 oz-in

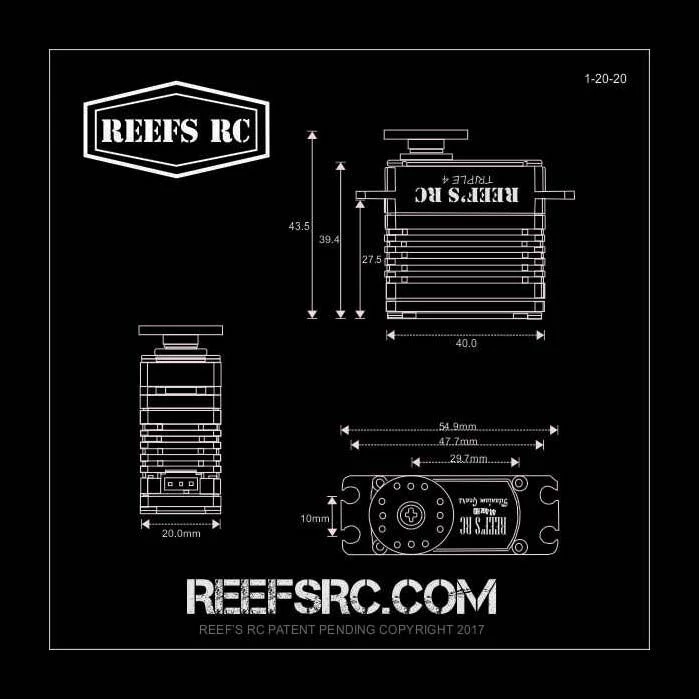

- Product Height: 1.5″ (38 mm)
- Product Length: 1.6″ (41 mm)
- Product Weight: 2.2oz
- Product Width: 0.8″ (20 mm)
- Spline Count: 25 – Tooth
