Product Details

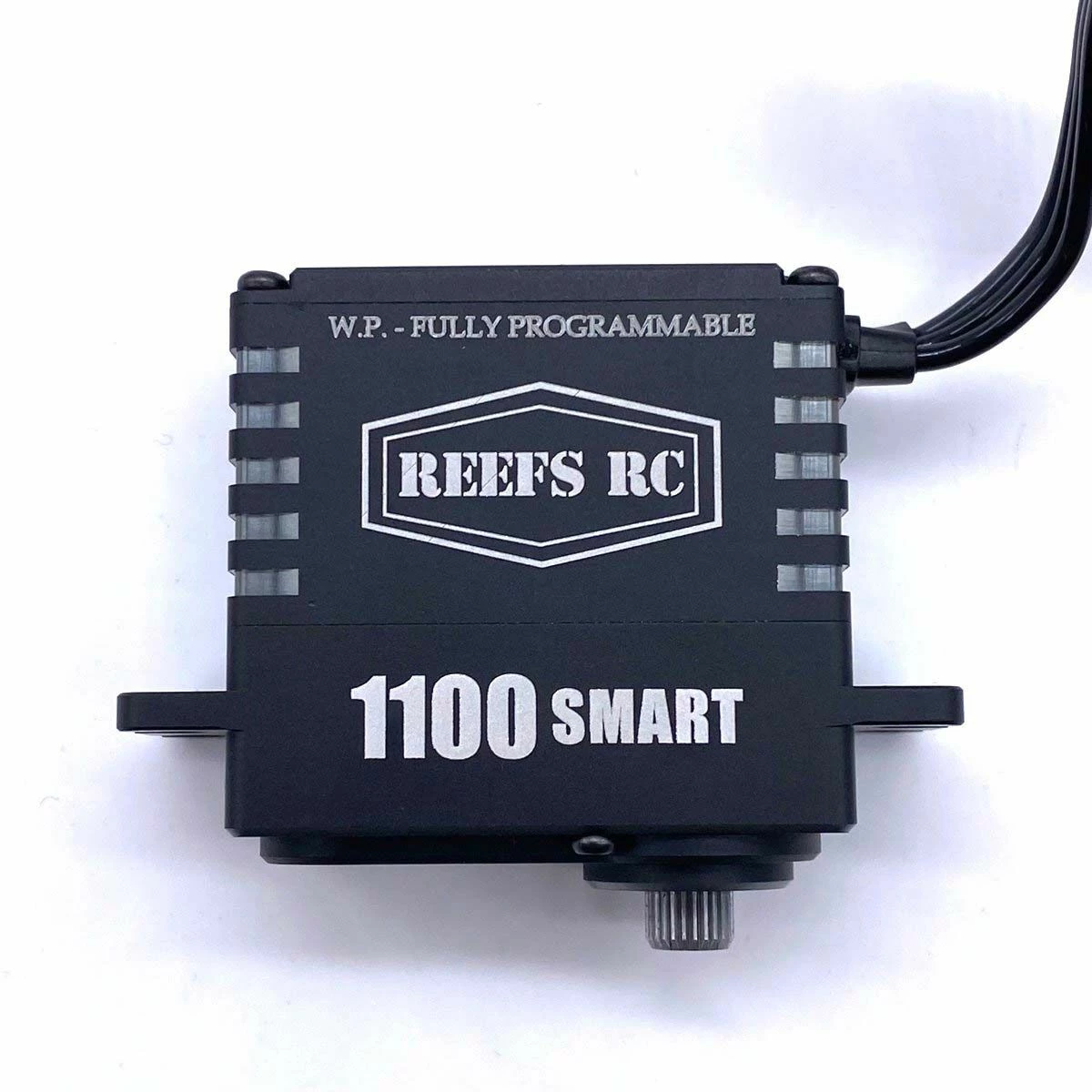

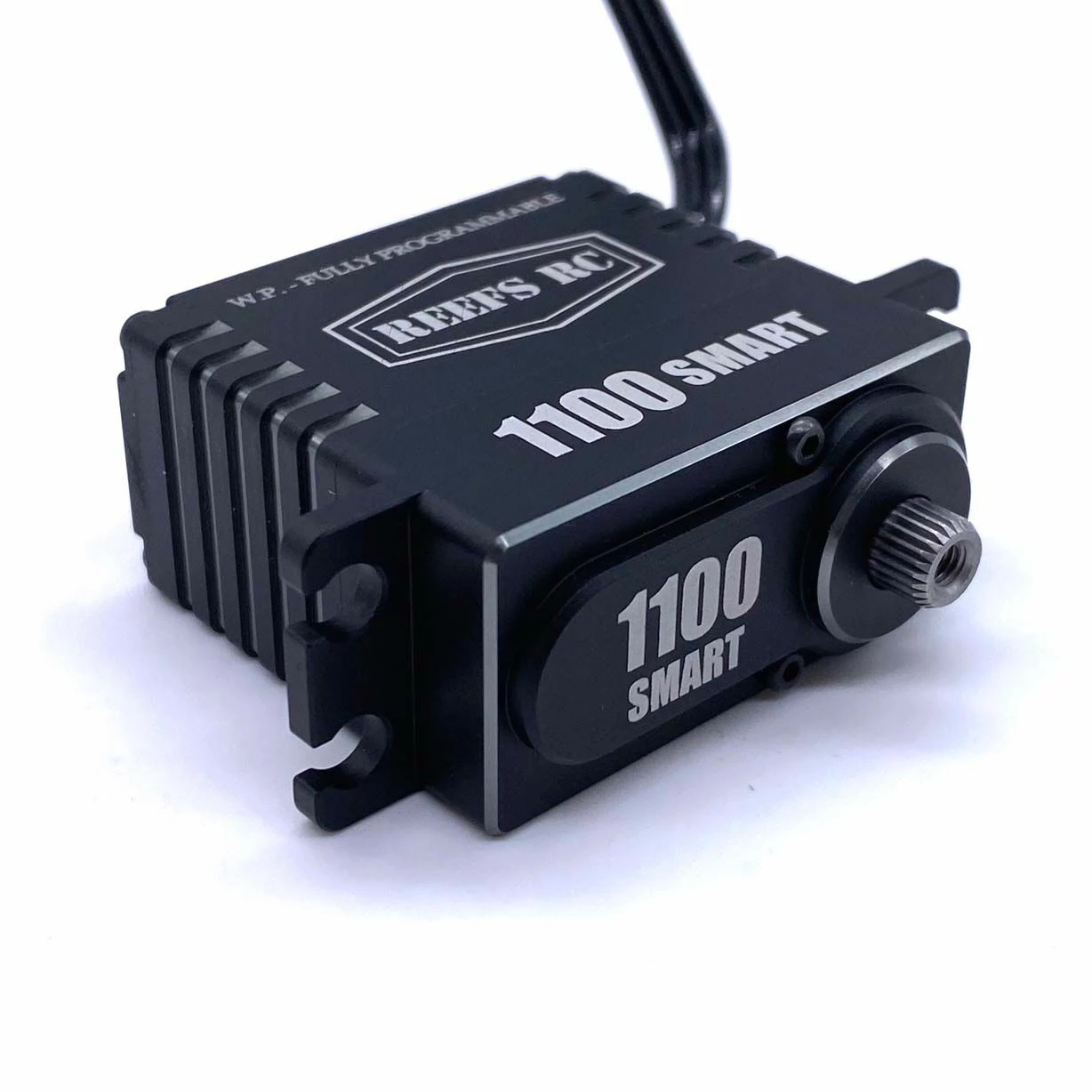

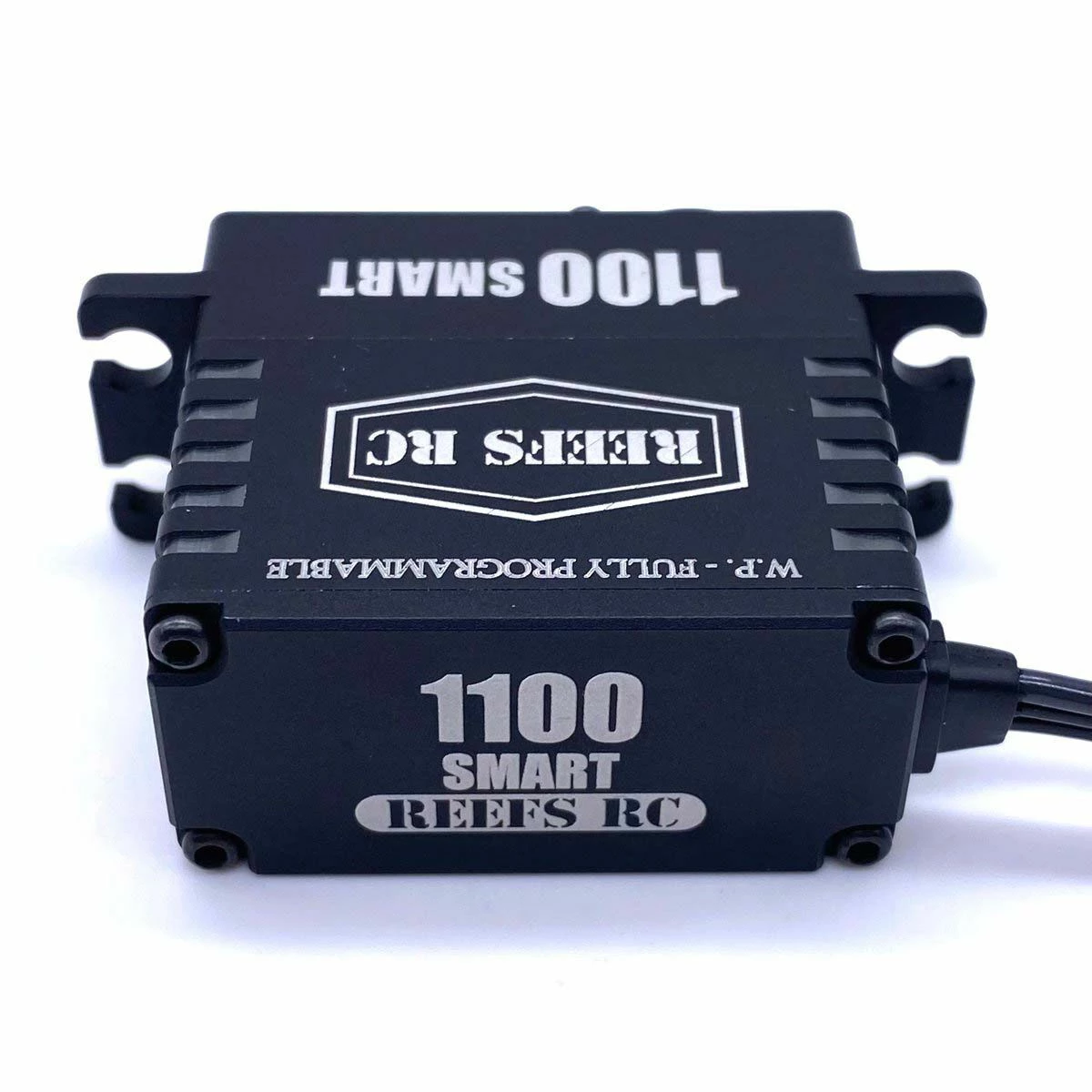

High Torque High Speed Brushless SERVO or WINCH
Key Features
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software
- Built in Preprogrammed Winch Controller
- SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- Steel Gears / All CNC Aluminum Casing
Needed to Complete
- REEFS LINK required for Programming
Product Specifications
- Bearing: 4 Ball Bearings
- Bushing Or Bearing: Bearing
- Current Draw Idle: Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
- Current Draw Stall: Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
- Deadband: 2 uSec
- Gear Type: Metal
- Input Voltage: 4.8V – 8.4V
- Maximum Servo Torque: 760oz @ 6v/ 930oz @7.4v/ 1100oz @8.4v
- Maximum Servo Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v
- Max Servo Torque: 500+ oz-in
- Product Height: 1.5″ (38 mm)
- Product Length: 1.57″ (40 mm)
- Product Weight: 2.99oz
- Product Width: 0.79″ (20 mm)
- Servo Operating Voltage: 4.8 – 8.4V (HV)
- Spline Count: 25 – Tooth
