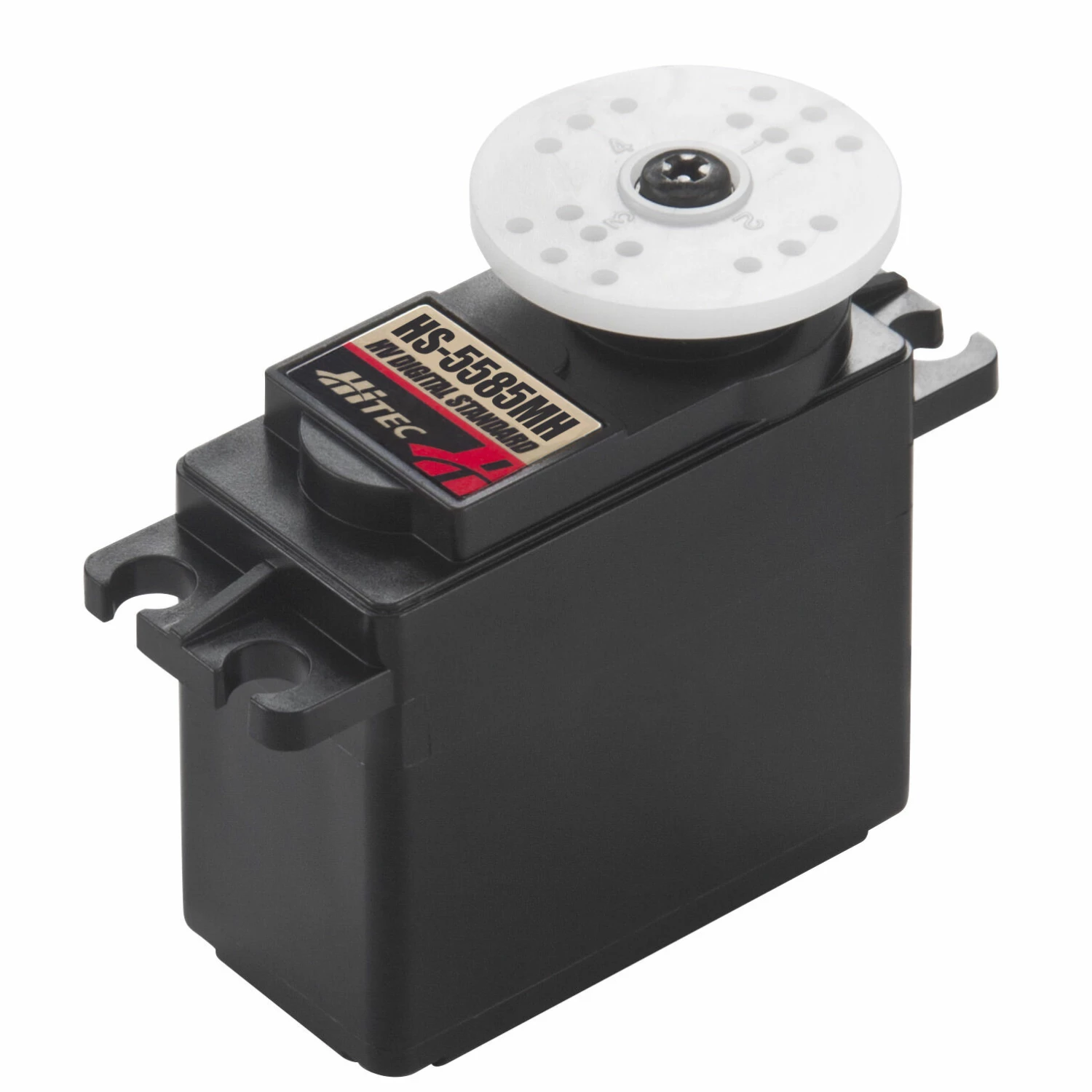

Hitec RCD Inc. HS-5585MH Standard Digital HV High Torque Metal Gear Servo

Hitec RCD Inc. HS-5585MH Standard Digital HV High Torque Metal Gear Servo

Original price was: $72.99.Current price is: $43.79.

SKU: HRC35585S Categories: Aircraft, Servos Tag: Hitec RCD Inc.

Quality You Can Count On
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.
Shop with confidence, enjoy free returns.

Description
Reviews (0)

Product Details

Key Features

Rated for 2S LiPo operation
Ideal for 1/10 scale monster trucks, 1/8 scale buggies and truggies, and high performance airplanes up to 35%
Heavy duty metal gears and dual ball bearings
Coreless motor
Speed: 0.17 sec/60° 0.14 sec/60°
Wire Length: 11.8″ (30mm)
Wire Gauge: 25AWG
Operating Temperature Range: -4 to 140°F
Idle Current: 4mA
Stall Current: 2100mA @ 6.0V, 2700mA @ 7.2V
Potentionmeter Type: 4 slider 1M cycle

icon-box

In The Box

HS-5585MH Servo with 0.94″ (24mm) Round Servo Horn
1.8″ (45mm) Round Servo Horn.
2.3″ (59mm) Double Sided Servo Arm
1.1″ (27mm) Single Sided Servo Arm
1.6″ (42mm) Four Point Horn
Mounting Hardware
Product Manual

Product Specifications

Bearing: Dual
Bushing Or Bearing: Bearing
Gear Type: Metal
Maximum Servo Torque: 194 oz-in (14 kg-cm) @ 6.0V; 236 oz-in (17 kg-cm) @ 7.4V
Maximum Servo Speed: 0.17 sec/60 deg @ 6.0V; 0.14 sec/60 deg @ 7.4V
Max Servo Torque: 200-349 oz-in
Product Height: 1.49″ (38 mm)
Product Length: 1.57″ (40 mm)
Product Weight: 2.10oz (60g)
Product Width: 0.78″ (20 mm)
Programmable: Yes
Servo Operating Voltage: 6.0 – 7.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
