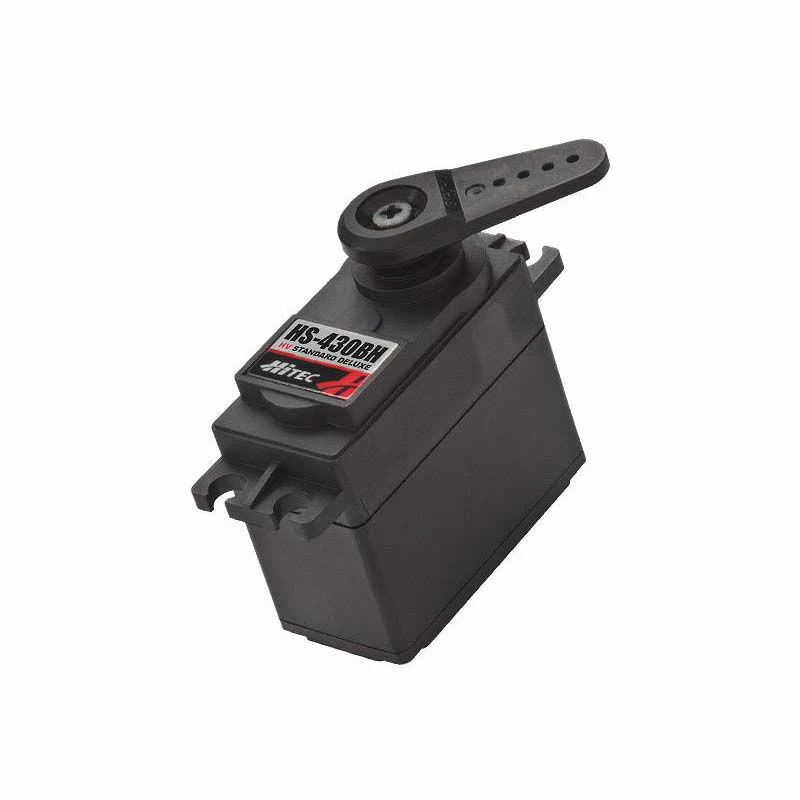

Hitec RCD Inc. HS-430BH Standard Analog HV Deluxe Servo

Hitec RCD Inc. HS-430BH Standard Analog HV Deluxe Servo - Image 2

Hitec RCD Inc. HS-430BH Standard Analog HV Deluxe Servo

Original price was: $17.99.Current price is: $10.79.

SKU: HRC31430S Categories: Aircraft, Servos Tag: Hitec RCD Inc.

Quality You Can Count On
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.
Shop with confidence, enjoy free returns.

Description
Reviews (0)

Product Details

Key Features

For .20-.60 size airplanes, all electric and glow powered 30 class helicopters, and steering and throttle in cars, trucks and boats
6-cell NiMH and 2-cell LiPo compatible
Dual ball bearing equipped
Direct potentiometer drive

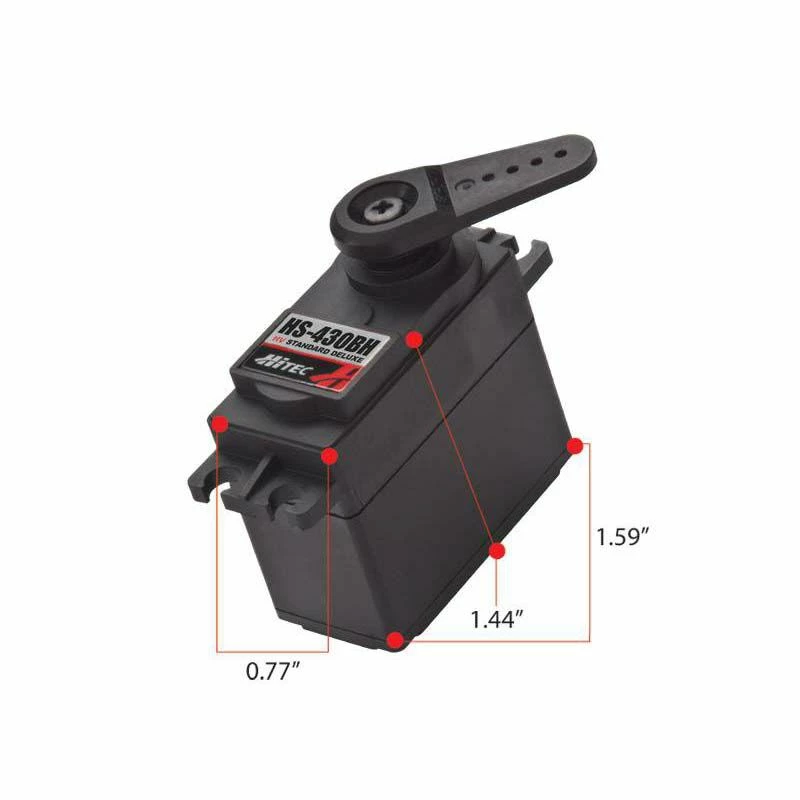

Size: 1.59 x 0.77 x 1.44″ (40.6 x 19.8 x 36.6mm)

icon-box

In The Box

HS-430BH Standard Analog HV Deluxe Servo
0.92″ (23.5mm) Round Horn
1.2″ (30mm) 4-Point Horn
1.7″ (43mm) 4-Point Horn
1.2″ (32mm) Double Arm Horn
1.2 (30.5mm) Single Arm Horn
Mounting Hardware

icon-how-to

Needed to Complete

Installing in model and connecting linkage

Product Specifications

Application: 50-64oz sport planes, 2M+ sailplanes, 50-64 oz scale aircraft, 1M sailboats, 1:10 scale power boats
Bearing: Single
Bushing Or Bearing: Bearing
Current Draw Idle: 8 mA
Current Draw Stall: 850mA
Gear Type: Plastic
Maximum Servo Speed: 0.16 sec/60 deg @ 6.0V; 0.14 sec/60 deg @ 7.4V
Max Servo Torque: 40-99 oz-in
Product Height: 1.44 in (36.6mm)
Product Length: 1.59 in (40.6mm)
Product Weight: 1.60 oz (45.5g)
Product Width: 0.77 in (19.8mm)
Programmable: No
Servo Operating Voltage: 6.0 – 7.4V (HV)
Servo Size Category: Standard
Servo Type: Analog
