Product Details
Key Features
- Dual ball bearings
- Indirect drive potentiometer for long life
- Connector is compatible with all modern receivers and wiring accessories
In The Box

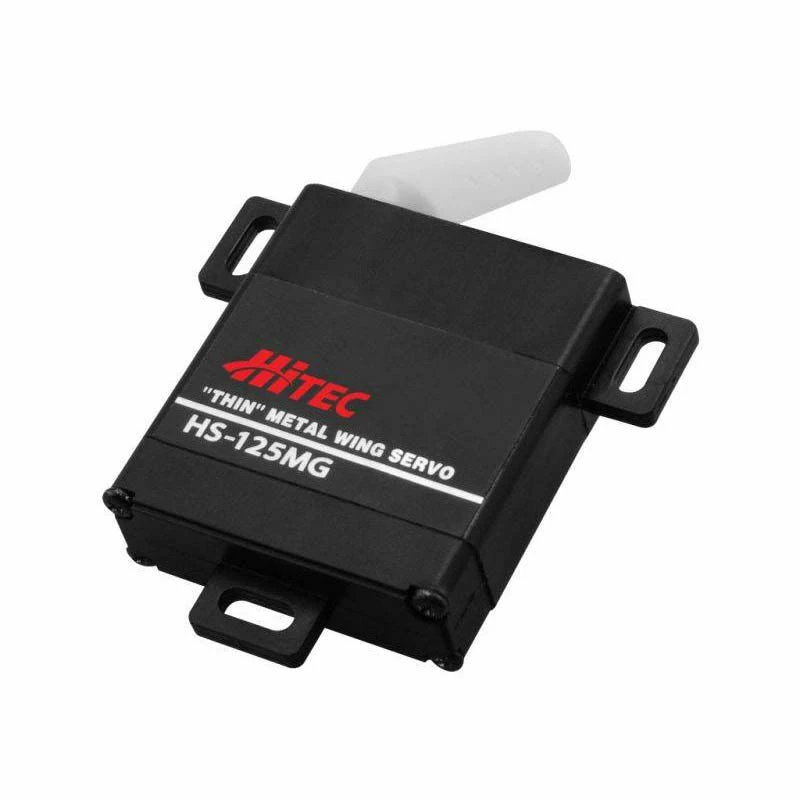

- One Hitec HS-125 Thin Metal Gear Wing Servo
- (2) Pieces of Double Sided Mounting Tape
- (2) One arm nylon servo arms
- (1) 2mm x 8mm servo arm mounting screw
- (3) 2mm x 5mm phillips screws
- (1) 3mm star washer
Needed to Complete
- Installing on model, attaching linkages, and connecting to receiver.
Product Specifications
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Current Draw Idle: 7.4mA @ 4.8V; 7.7mA @ 6.0V
- Deadband: 5 microsecond
- Gear Type: Metal
- Maximum Servo Torque: 41.7 oz-in (3.0kg-cm) @ 4.8V; 48.6 oz-in (3.5kg-cm) @ 6V
- Maximum Servo Speed: 0.17 sec/60 deg @ 4.8V; 0.13 sec/60 deg @ 6V at no load
- Max Servo Torque: 40-99 oz-in
- Motor Type: 3-pole
- Programmable: No
- Servo Operating Voltage: 4.8 – 6.0V
- Servo Size Category: Thin
- Servo Type: Analog
