Product Details
Key Features
- Full Programmability
- IP-67 Waterproof Rated
- Smart Sense Technology for Servo Analytics
- 32-Bit MCU Technology / 4096 Resolution
In The Box

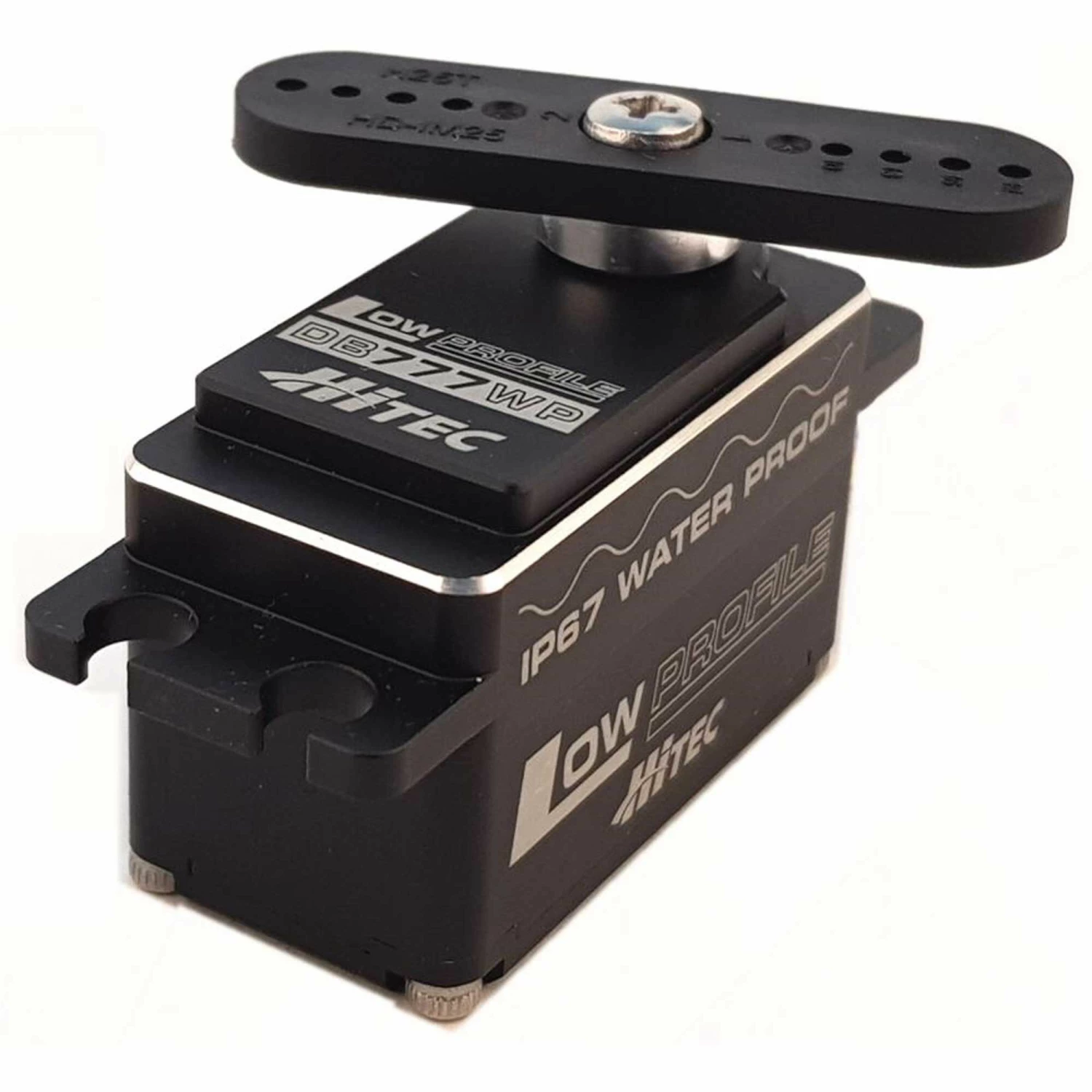

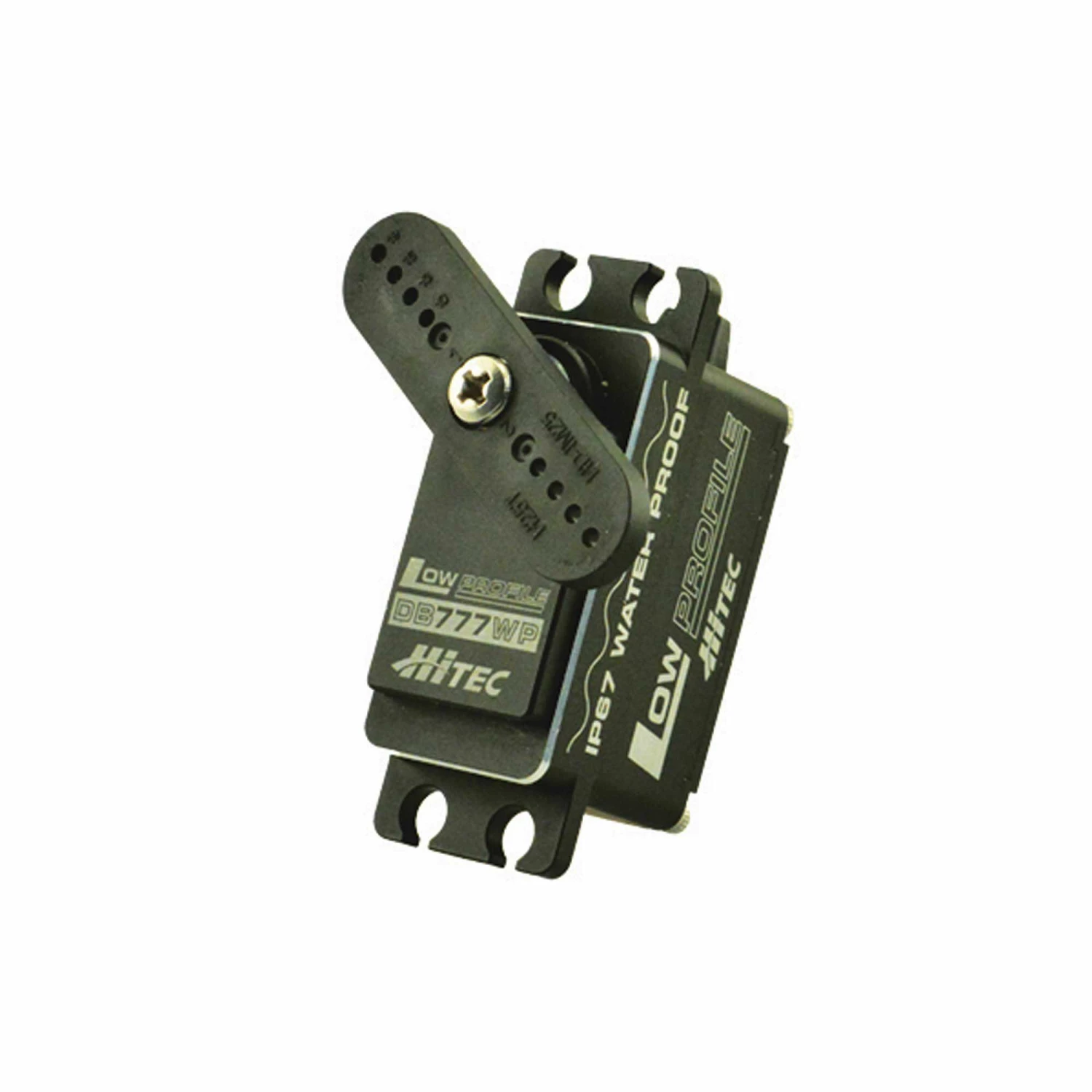

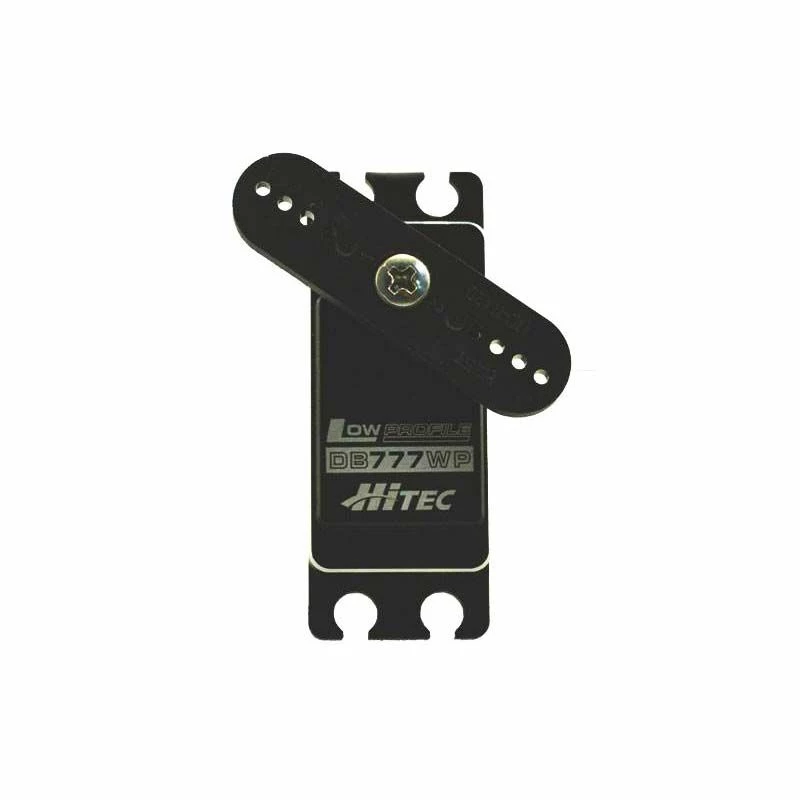

- (1) DB777WP Standard Digital Brushless Waterproof Metal Gear Surface Servo
Product Specifications
- Application: 1/8 scale on- and off-road vehicles
- Bushing Or Bearing: Bearing
- Current Draw Idle: 35mA / 40mA
- Current Draw Stall: 3500mA / 4500mA
- Deadband: 1?sec
- Gear Type: Metal
- Maximum Servo Speed: 0.050-0.099 sec
- Max Servo Torque: 100-199 oz-in
- Product Height: 1.04″ (26.5mm)
- Product Length: 1.61″ (41mm)
- Product Weight: 2.4oz (68g)
- Product Width: 0.83″ (21mm)
- Programmable: Yes
- Servo Operating Voltage: 6.0 – 7.4V (HV)
- Servo Size Category: Standard
- Servo Type: Digital
- Wire Gauge: 20 AWG
