Product Details
Key Features
- Ideal for 20-120 class aircraft, all EP 600-700 & GP 30-90 class helicopters, 1/10-1/4 scale car steering and throttle and nitro and gasoline powered boats
- Dual ball bearing supported titanium alloy gears
- Wide operating voltage, DC3.5-8.4V
- Ultra hard gear shaft with three axial metal bushings
- Heat sink for motor
- Water and dust resistant (splash proof)
- Programmable digital amplifier with MOSFET drive (requires the Hitec HFP-30 Servo Programmer sold separately, HRCM4427, and DPC-11 Interface, HRCP4429)
In The Box

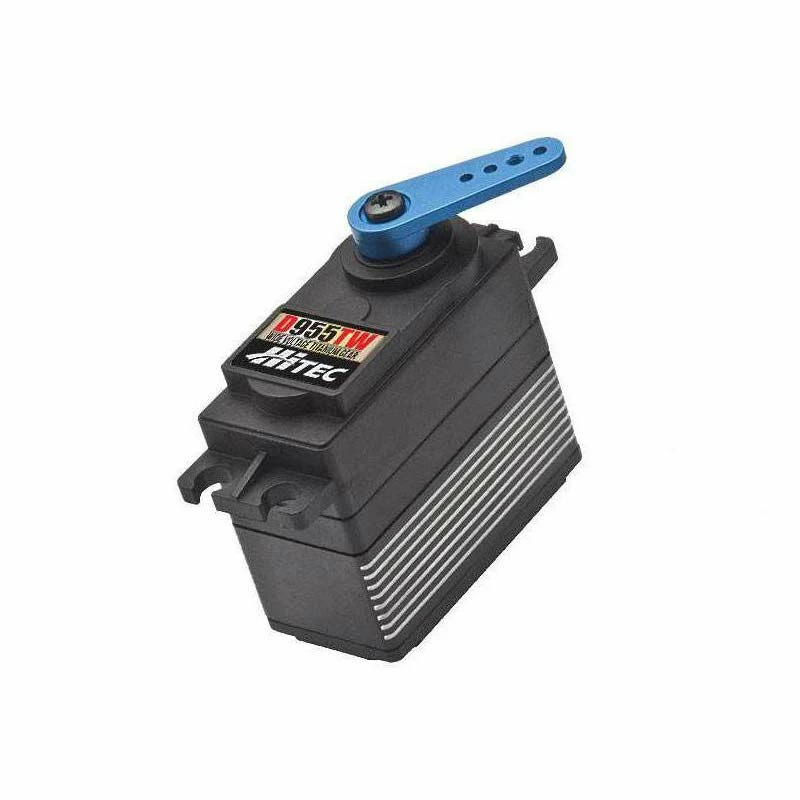

- D955TW Servo
- 1.4″ (36mm) Round Servo Horn
- 1.5″ (38mm) 4-Point Horn
- 1″ (25.4mm) Single Arm Horn
- Mounting hardware
Product Specifications
- Application: 30-40% 3D performance, scale and sport planes, 2M+ sailplanes, 1M & scale sailboats, 1:8 scale on & off road vehicles
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Current Draw Idle: 30mA
- Current Draw Stall: 5200 mA
- Deadband: 1 microsecond
- Gear Type: Metal
- Maximum Servo Torque: 251 oz-in (18kg-cm) @ 4.8V; 405 oz-in (29kg-cm) @ 7.4V
- Maximum Servo Speed: 0.19 sec/60 deg @ 4.8V; 0.12 sec/60 deg @ 7.4V
- Max Servo Torque: 350-499 oz-in
- Product Height: 1.46 in (37.0mm)
- Product Length: 1.57 in (40.0mm)
- Product Weight: 2.33 oz (66.0g)
- Product Width: 0.78 in (20.0mm)
- Programmable: Yes
- Servo Operating Voltage: 4.8 – 7.4V (HV)
- Servo Size Category: Standard
- Servo Type: Digital
